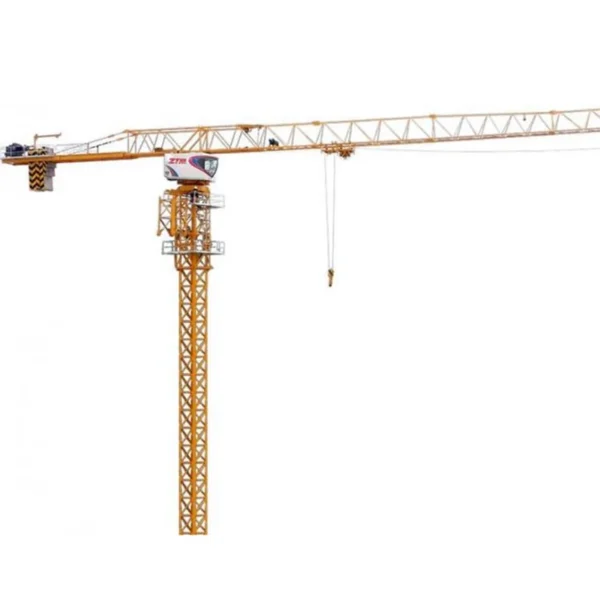

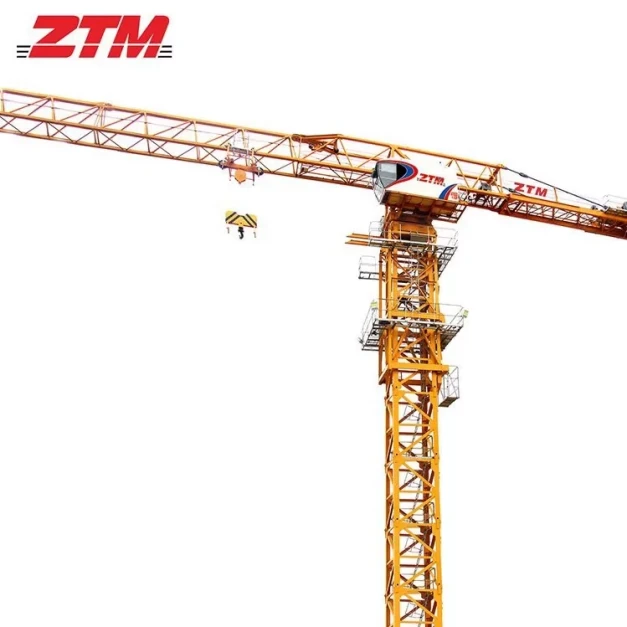

ZTT186 8t Flattop Tower Crane
Max. hoisting capacity：8
Max. hoisting capacity at jib end：1.7
Max. boom length：65
Max. free standing height：46
Max. jib Length：65
Tip Load：1.7
Independent height (m)：46

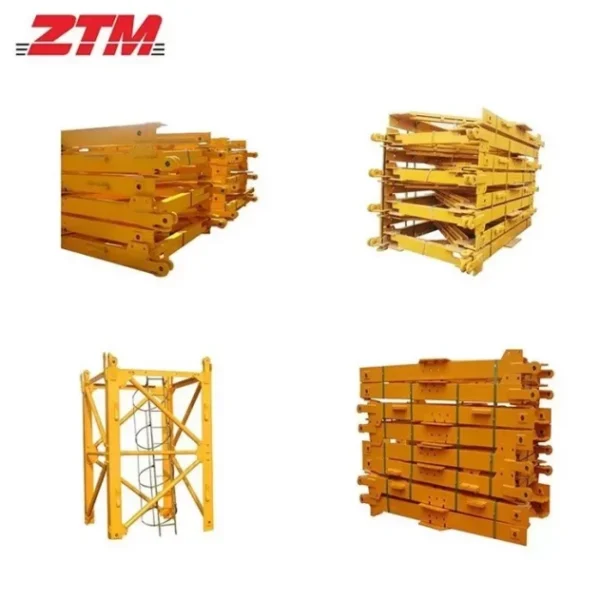

Standard section configuration：L46A1/L46S
Description

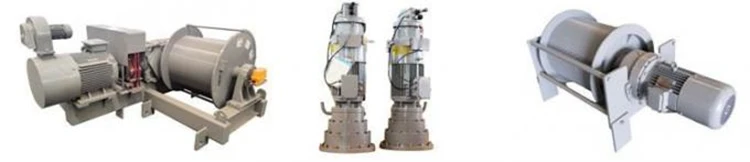

| Mechanism (ZTT186 8T) | 2Fall | 4Fall | Drum capacity | Motor | ||||
| m/min | t | m/min | t | KW | ||||
| Hoisting | 8T | 40LVF20 | 0-40 0-58 0-80 | 4.0 2.5 1.5 | 0-20 0-29 0-40 | 8.0 5.0 3.0 | 440m ＞440m* | 30 |
| Trolleying | BP5570X | 0-64 m/min | 5.5 | |||||
| Slewing | RVF4.0 | 0-0.6rpm | 2*5.5 | |||||
| Traveling | RT | 12.5-25 m/min | 2*2.6/5.2 | |||||
| Pressure | KVA | |||||||
| 380V(±10%) 50HZ | 40LVF20:62 | |||||||
